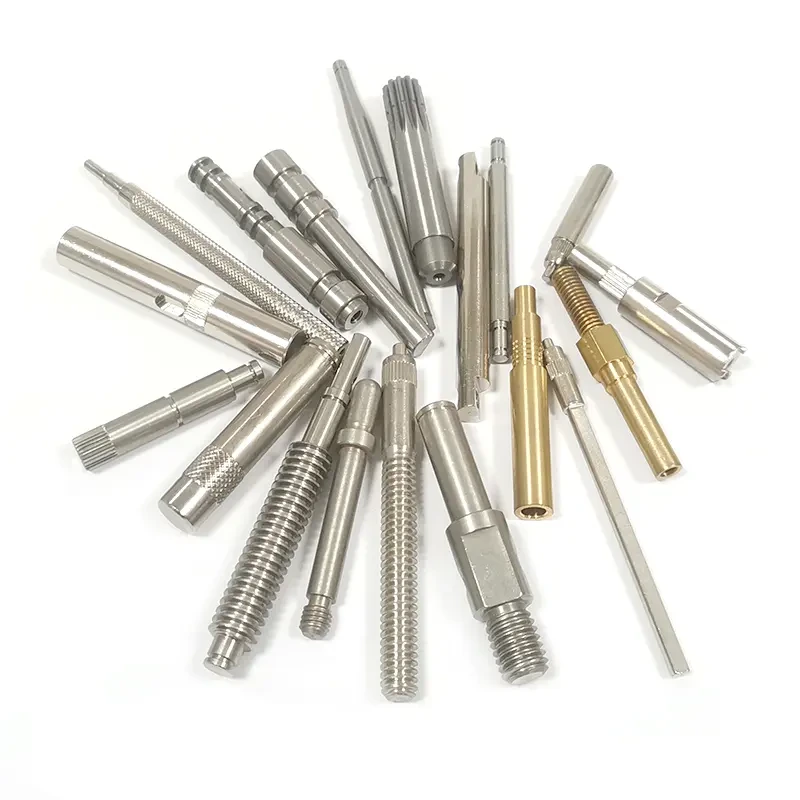

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin

Precision Machining

  • "CNC Turning"  (High-accuracy machining process).
  • Mention  "Precision Machined"  (Tolerances, e.g., ±0.005mm ).

  • Optional:  "Mirror Finish"  oder  "Smooth Threads"  for surface quality.

Customization & Non-Standard Design

  • "Non-Standard Fasteners"  (Custom sizes, threads, lengths).

  • Specify  "Tailored to Drawings"  oder  "ODM/OEM Support"

Thread Specifications

  • "Threaded Rod"  (Clarify thread type:  Metric, UNC, UNF, Acme, etc. ).

  • Add details like  "Fine/Coarse Threads"  oder  "Left/Right-Hand Threads"

Durability & Anwendung

  • "Heavy-Duty"  oder  "Industrial-Grade"  for robustness.
  • Target industries:  "Aerospace, Automotive, Machinery" .

High strength precision shaft pin

High-precision pins designed for electronics, automotive and aerospace fields are made of AISI 4140 alloy steel, 316 stainless steel and titanium alloy, and support customized sizes (diameter 1mm-50mm). Through heat treatment + surface coating process, the tensile strength is ≥1200MPa, meeting the durability and stability requirements under extreme working conditions.

Détails du produit

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 10
Material options
Alloy steel, stainless steel, titanium alloy, copper alloy, brass
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 11
Gamme de tailles
- Diameter: 1mm-50mm (expandable) - Length: 5mm-500mm
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 12
Tolerance standard
ISO 286-2 h6 grade accuracy, optional h4 grade (pre-communication required)
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 13
Traitement de surface
Hard chrome plating, chemical nickel plating, QPQ nitriding, PTFE coating, laser texture engraving
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 14
Certification standards
RoHS, REACH, ISO 9001:2015, AS9100D (aerospace)
轴

Avantages du produit

10B21 钢

Material properties

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 17
Ultra-high strength
AISI 4140 tempering hardness reaches HRC45-50
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 18
Corrosion resistance
316 stainless steel passes 480-hour salt spray test
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 19
Lightweight
Titanium alloy density is only 60% of steel, and its strength is comparable

Process accuracy

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 20
Precision machining
Swiss CNC lathe, diameter tolerance ±0.001mm
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 21
Traitement de surface
Ion nitriding layer thickness 0.1-0.3mm, friction coefficient ≤0.15
车削 (3)
快递 (1)

Service Guarantee

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 24
Flexible customization
Small batch customization, support 3D drawings/physical reverse engineering
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 25
Global delivery
DHL/FedEx dedicated line, 72-hour expedited service

Our advantage

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 26
Technical Strength
20 years of experience in precision parts manufacturing, own 5-axis CNC + precision lathe
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 27
Quality control system
100% full inspection: three-coordinate measuring machine (CMM) + spectrum analyzer, zero defect delivery rate 99.8%
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 28
Customer Cases
Long-term partner of German electronics
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 29
Value-added Services
24-hour technical response from the engineering team

Application

Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 30
Electronics Industry
As the fixing, connecting or transmission parts of the internal components of electronic equipment, such as some shaft parts in printers and precision instruments
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 31
Medical Industry
Used in operating mechanisms of micro clamps and tweezers for surgical instruments, rotating parts and motion control mechanisms of large medical equipment such as CT scanners and MRI machines
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 32
Automotive Industry
Can be used for engine, transmission and other parts, such as engine camshaft, transmission shift shaft, etc.
Automatic Lathe CNC Turning Process Cylindrical Positioning Pin Shaft Rubbing Wire Shaft Rolling Pin Fixing SS304 Shaft Pin 33
Aerospace
Used for engine turbine blades, compressor blades and other parts

FAQ

If you have any questions, please feel free to contact us at ada@honscn.com or by phone at +86 17722440307

1
What is the minimum order quantity (MOQ)?
Supports single-piece customization, no MOQ restrictions, suitable for prototype development and small-batch trial production
2
Can you provide a material certification report?
Standard material certification (MTC), optional SGS/UL/TÜV third-party inspection report
3
What is the delivery cycle of non-standard shaft pins?
3-5 days for standard parts, 7-15 days for complex structural parts (including surface treatment); the cycle will increase as the number of products increases
4
How to prevent the shaft pin from loosening and falling off?
Optional thread lock glue groove, spring collar groove or interference fit design (need to be marked in the drawing)
